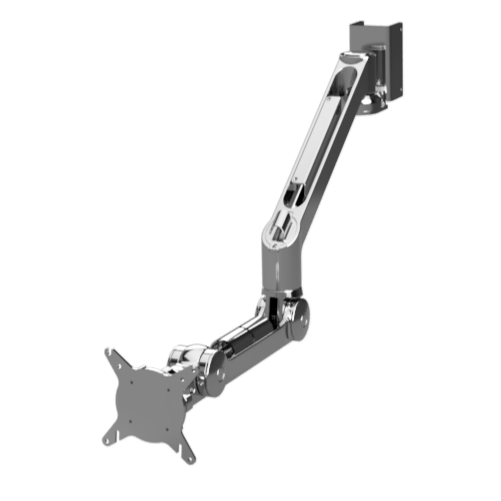

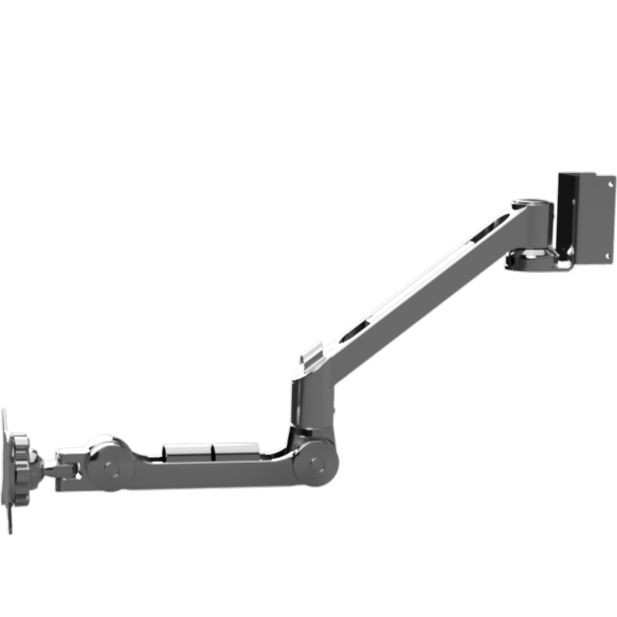

ACE15R Inverted Lab Support Arm – Triple Hook Wrap Around Bracket – KBS
The ACE15R design features unique mechanics and an extended height range, enabling monitors, laptops and tablets to be positioned at an optimal working height. This minimizes interference with laboratory tasks during use while also allowing for convenient storage when not in use.

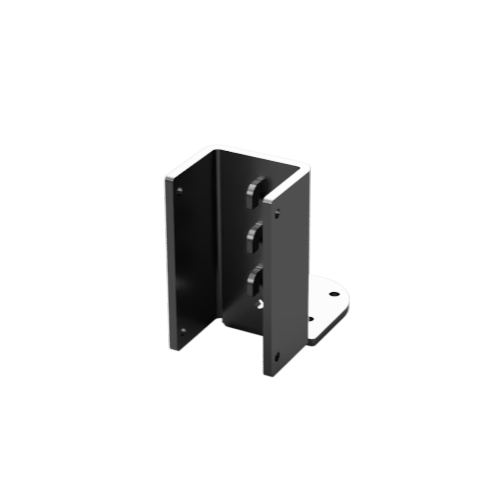

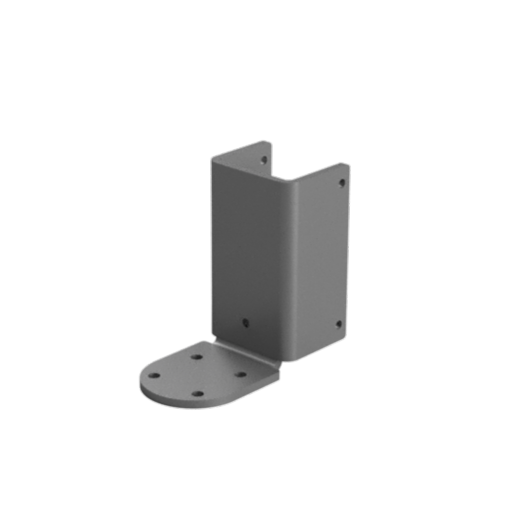

The ACE15R -KBS has a 2in ID to wrap around the upright and
Confirmed Compatibility
BEDCO Symphony
List Price:$500.00
SPECIFICATIONS
| Range of Motion | Rotate, Tilt and Swivel |
| Weight Capacity | 4.4~19.8 lbs |
| Cable Management | Cable Guides |
| Extension | Max 15″ |
| Range of Lift | 5.25″ – 20.5″ |
| Mounting Options | CUSTOM T SLOT BRACKET |
| Vesa Plate | 75/100mm |
| Adjustment Aid | Friction Lock Technology |
FINISHES

RESOURCES
ACE15R-KBS CUT SHEET
ACE15R-KBS INSTALLATION GUIDE
ACE15R-KBS .STEP
ACE15R-KBS .DWG
