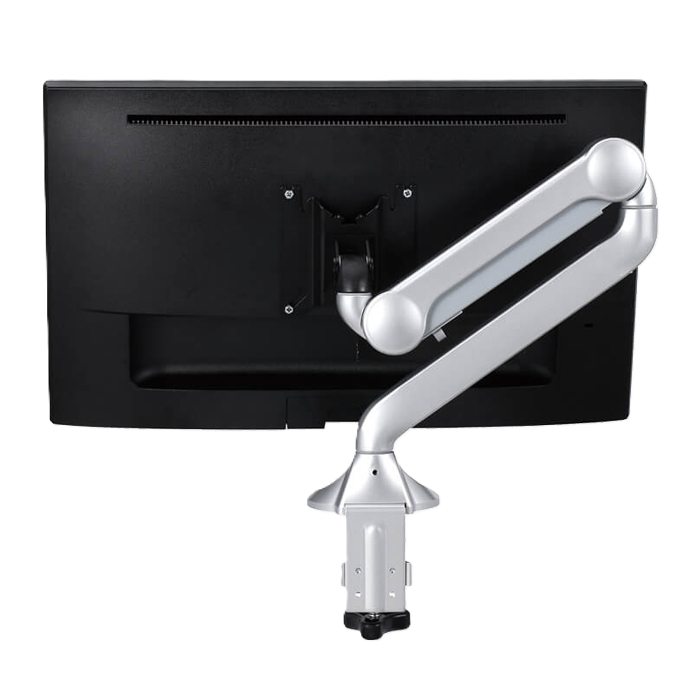

AX1 Single Monitor Arm
The simple design of the AX1 is built to fit virtually any budget while delivering exceptional durability and long-lasting performance. Its innovative mounting system gives users the flexibility to either grommet-mount or clamp-mount the arm to almost any work surface.
List Price:$280.00
SPECIFICATIONS
| Range of Motion | Rotate, Tilt and Swivel |
| Weight Capacity | 4.4~19.8 lbs |
| Cable Management | Cable Clips |
| Extension | Max 45.83″ |
| Range of Lift | 7.36″ – 24.72″ |
| Mounting Options | Clamp or Grommet (same bracket) |
| Vesa Plate | 75/100mm |
| Adjustment Aid | Premium Gas Spring |
FINISHES
RESOURCES
AX1 CUT SHEET
AX1 INSTALLATION GUIDE
AX1 .STEP
AX1 .DWG
